- IP Camera 1
- Category:

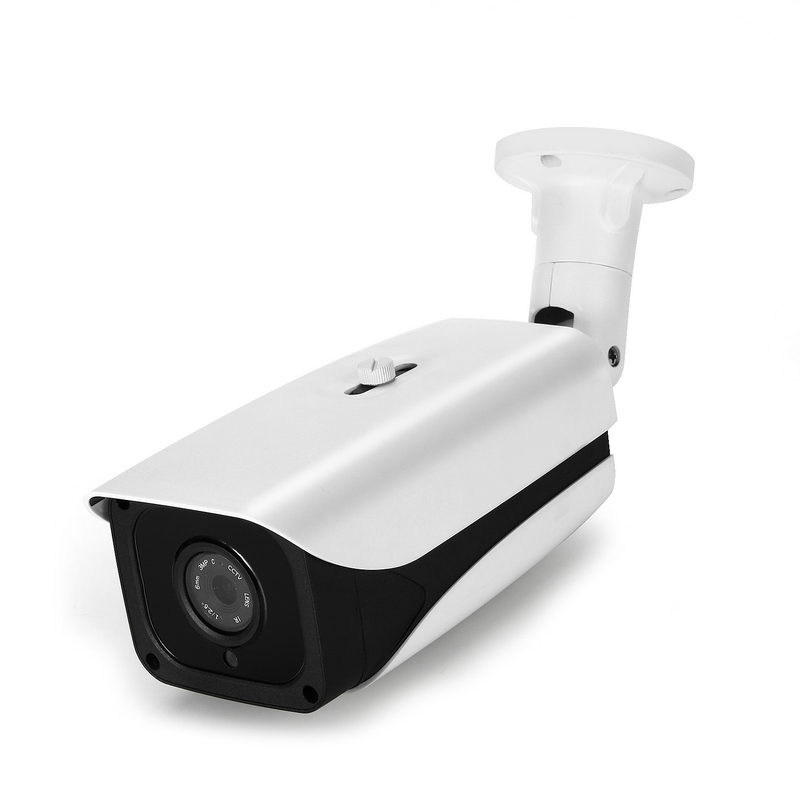

IP Camera--H.264 IP Camera
2M HD resolution,clear and fine images;Support 2D/3D noise reduction,digital wide dynamic;Advanced H.265/H.264 video compression,Super low rate,high definition quality
- Previous:IP Camera 2Next:No record
Detailed introduction:
2M HD resolution,clear and fine images;
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265/H.264 video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
Support ONVIF ,access third party；
Support various mobile monitoring(iPhone,Android);
Provide web、CMS、center platform management software MYEYE,provide SDK development
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IPX-20PA-A | IPX-B20PA-A |
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516CV300),pure hard compression ,watch dog | |
| Sensor | 2.0M 1/2.7" AR0237 low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 | |
| Video compression | H.265/H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable | |
| Image output | Main stream: 1920*1080@25fps, 1280*720@25fps; sub-stream: 704*576@25fps; | |
| Shutter | 1/50(1/60)s to 1/10,000s | |
| Lens | No | |
| Day and night | Support IR-CUT | |
| Noise reduction | Support 2D/3D | |
| Wide dynamic | Support digital | |
| Auto iris | N/A | |
| Audio compression | N/A | G.711,support bidrectional talk,audio&video synchronization; |
| Audio interface | N/A | 1ch input,electrical level 2Vp-p,impedance 1kΩ,support pickup input;1ch output,impedance 16Ω,30mv output power,support to connect the headset or power amplifier |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc | |
| Extension | N/A | 1*USB,support WIFI/3G,support SD；1ch Alarm output；reset key；1ch Alarm input or LED panel；RTC battery |
| interface | ||
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR | |
| PTZ | N/A | |
| Motor | N/A | |
| interface | ||
| Alarm I/O | N/A | 1/0 (support alarm input and video link to background) |
| WIFI interface | N/A | |
| Reset | N/A | |
| interface | ||
| SD Card | N/A | |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing | |
| Intelligence | Support | |
| analysis | ||
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; | |
| ONVIF | Support | |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） | |
| Power | DC12V/2A input, power consumption:≤3W, | |
| Dimension | 38mm*38mm | |
| Other | Support POE power supply (optional), not support any custom | |
